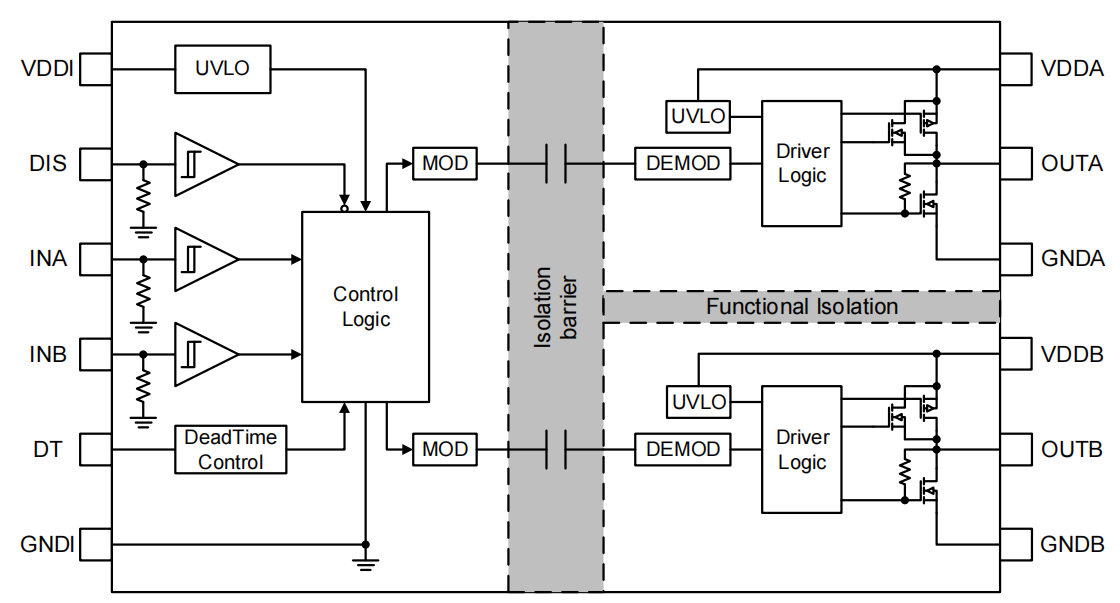

• Isolated dual channel driver
• Input side power supply voltage: 3V~5.5V
• Driver side power supply voltage: With UVLO, up to 30V
• Peak source and sink current 4A/6A
• High CMTI: 150kV/us
• Typical propagation delay: 25ns
• Maximum delay matching: 5ns
• Maximum pulse width distortion: 6ns
• Programmable dead time (NSi6602)
• No dead time (NSi6622)
• Minimum receivable input pulse width: 15ns
• Operating temperature: -40°C~125°C
• Package type: LGA13, SOIC14(300mil), SOIC16(300mil),SOIC16(150mil)
• AEC-Q100 qualified
• UL1577 certification:
• LGA13: 2.5kVrms
SOIC14(300mil): 5.7kVrms for 1 minute
SOIC16(300mil): 5.7kVrms for 1 minute
SOIC16(150mil): 3kVrms for 1 minute
• CQC certification: GB4943.1-2011
• CSA certification: 5A
• VDE certification: DIN V VDE V 0884-11:2017-1
• Isolated DC-DC and AC-DC power supplies in servers, telecommunications and Industrial
• DC-AC solar inverter
• Motor drive and EV charging
• UPS and battery charger
