• Up to 8kVrms Insulation voltage (SOWW16 Package)
• Data rate: DC to 150Mbps
• Power supply voltage: 2.5V to 5.5V
• High CMTI: 200kV/μs
• Chip level ESD: HBM: ±8kV
• Robust Electromagnetic Compatibility (EMC): System-Level ESD, EFT, and Surge Immunity; Low Emissions
• Default output high level or low-level option
• Low power consumption: 1.5mA/ch (1 Mbps)
• Low propagation delay: <15ns
• Operation temperature: -55℃~125℃

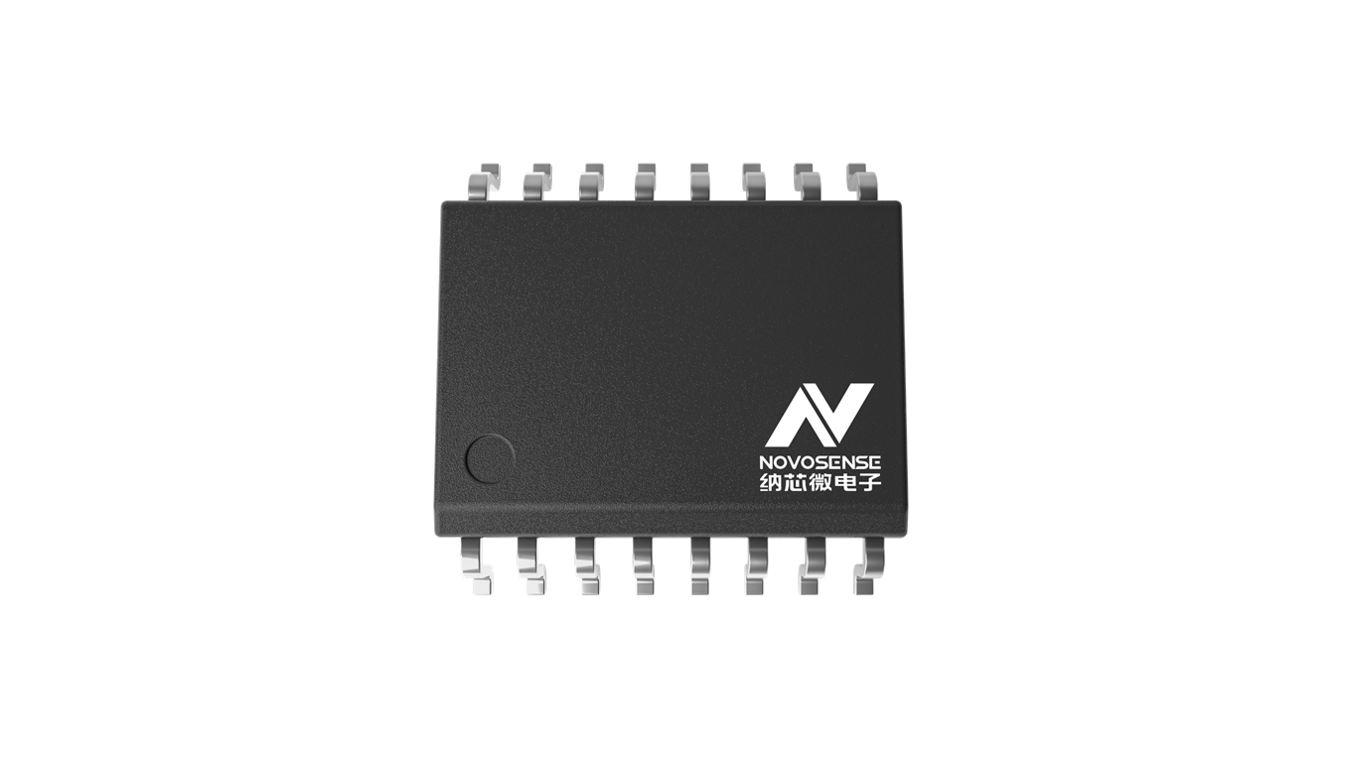

• RoHS compliant package: SOP16, SSOP16, SOW16, SOWW16
• UL recognition: up to 5000Vrms for 1 minute per UL1577
• CQC certification per GB4943.1-2011
• CSA component notice 5A
• DIN VDE V 0884-11:2017-01
• Industrial automation system
• Isolated SPI, RS232, RS485
• Universal Multi-Channel Isolator
• Motor control
